M-Light is a type of acoustic metamaterial designed to control the propagation of sound waves. Its unique structure and properties allow it to tune sound reflection and absorption to improve acoustic environments.

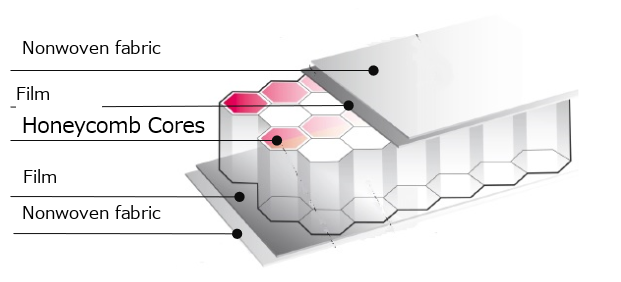

The combination of a folded honeycomb structure and film layers achieves light weight and high rigidity.

  

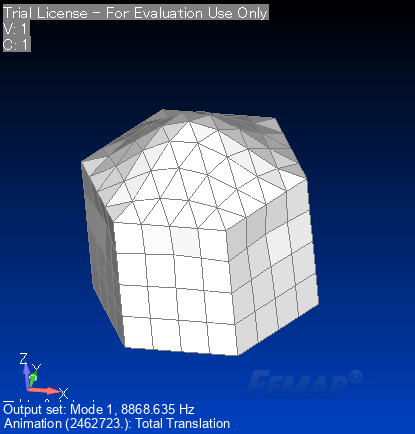

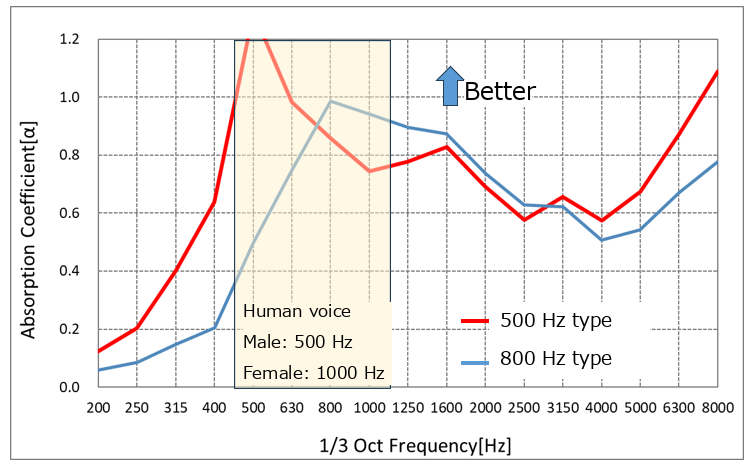

By tuning Helmholtz resonance and membrane resonance, it absorbs sound over a wide frequency range with minimal thickness.

  



The absorbed frequencies can be tuned to suit the application.

  



Sound Insulation Video

M-Light also provides sound insulation that conventional sound-absorbing materials do not have.

​  





[Patents]

• Japanese Patent No. 6925082 "Sound absorbing material for automobiles" (JP, US)
• Japanese Patent No. 6930774 "Automotive component" (JP, US, EU)
• Japanese Patent No. 7187053 "Vehicle interior material" (JP, US, CN)
• Japanese Patent No. 7326649 "Sound insulating material for automobiles" (JP, US)
• Japanese Patent No. 7343516 "Sound insulating material for automobiles" (JP, US)
• Japanese Patent No. 7376509 "Vibration damping material" (JP, US, CN)



In addition, 3 applications pending in Japan and 8 overseas



[Specifications]

- Material: Lightweight resin (PP) honeycomb
- Thickness: 5 mm, 10 mm and 20 mm variations
- Size: up to 1,500 mm wide
